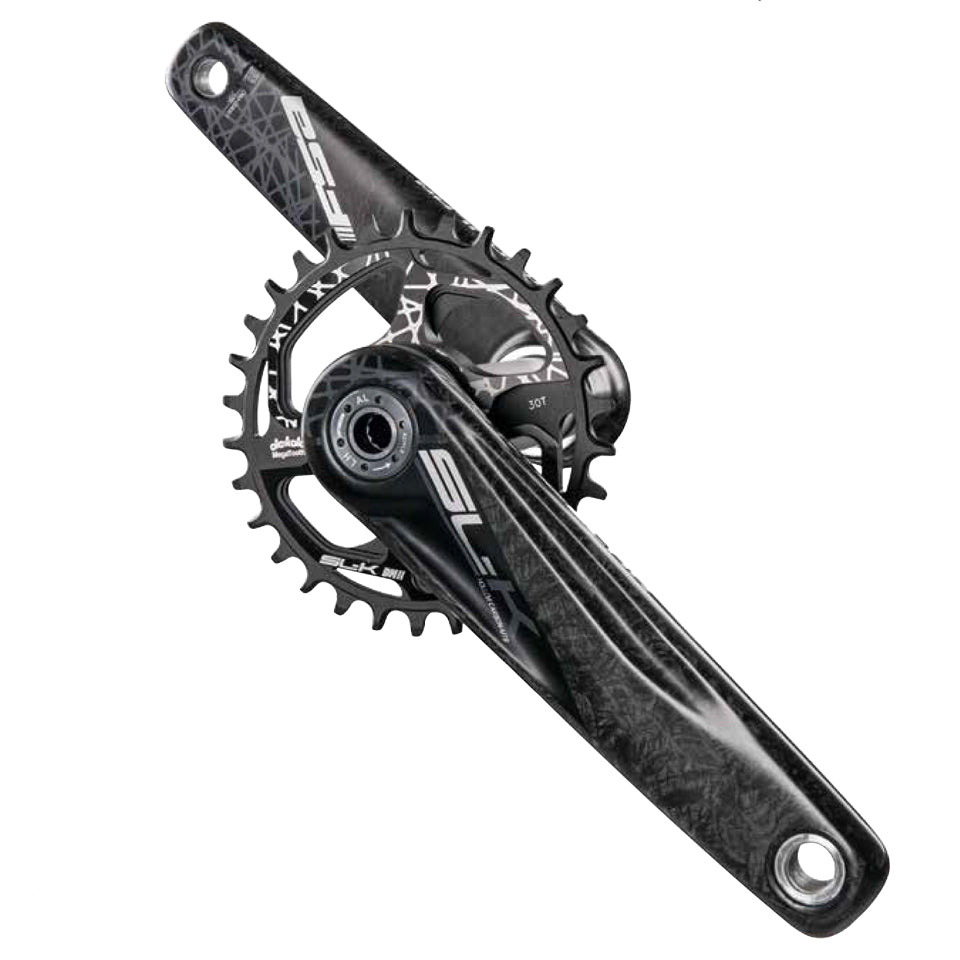

SL-K BB392EVO Modular Crankset 1X
• Hollow carbon composite arms with UD finish
• 30mm forged AL7050 BB392EVO spindle
• AL7075 100% CNC chainrings
• Thick-Thin tooth design for maximum chain engagement
• Fits Shimano and SRAM 11-12 speed system
• Length - 170mm, 175mm
• BCD - Direct Mount
• 30T (WA045)
• 32T (WA046)
• 34T (WA048)
• 28T - 38T
• UD carbon arms
• Color graphics options - grey
• 517 grams (30T x 170mm)
• Modular Crank Lock Ring Part # 390-0044000600
• Modular Crank Lock Ring Tool Part # 230-0023000520

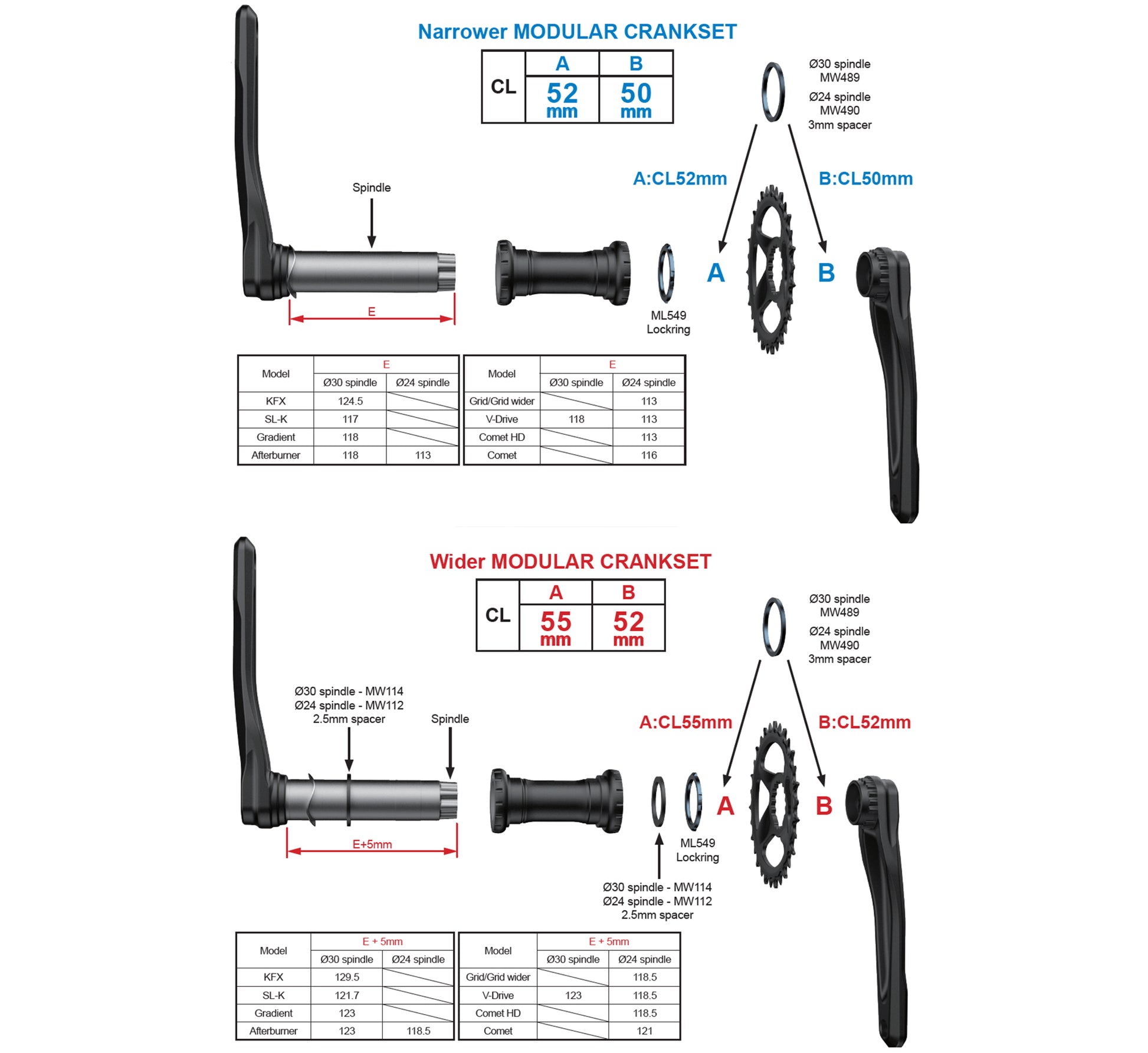

NOTE: *Asterisks in dropdown indicate the position of installed chainring. Modular Crank Lock Ring Tool (230-0023000520) can be used to adjust the chainring position.
Crank it up!
These cranks are pretty rad. I have had them for about a year and no problems. I like the carbon look that these cranks have too.
A Definite Inclusion for our XCRace Lineup
Great high end option for a build upgrade...light, stiff and great looking! Install was a breeze and bolted up to spec just fine. This will be a definite upgrade option for my customers purchasing our XC Race bikes. Frank, Owner/ Builder NAT!VE Custom Cycles LLC
